ATEX Super PM Extractor Arm

ATEX Super PM Extractor Arm

$2,693.00 - $3,535.00

Our most versatile, economical arm, suited for most any fume extraction needs. Retains its position with inside parallelogram technology, still incredibly easy to move.

Current Stock:
Electrogalvanized with a hood and handle of mirrorpolished, acidproof stainless steel. External hydraulically suspended parallelogram arms. Incredibly easy to move, with free flow in the hose.
Galvanised Extractor arm

Galvanised Extractor arm with hood and handle made of acid proof mirror polished stainless steel. ∅110/160 mm 1.5 – 4 m.

Super-Max is a High Quality Product

It is equipped with a long strong steel hood to withstand sparks, chemicals and heat. The hood has a built in adjustable damper. The hose has a smooth inside and is very durable. All parts are laser cut for maximum precision.

Pharmaceutical, Food process and Technical chemical Industry

Extraction arm for explosive gas in zone 1 and 2 as well as dust for zone 21 and 22.

The Hood is the Secret behind the efficiency

The hoods are developed in cooperation with one of the biggest companies in the chemical industry. The straight hood is for dust. The 67° hood is for smoke and the 150° hood is for gases. The 150° hood develops a “tornado” effect, which enhances its capacity to extract gases.

Perfectly balanced

External hydraulically suspended parallelogram arms make the hood incredibly easy to move and 100 % stable in all positions.

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

Part #

Part Name

Length

Diameter

Additional Info

P-367

ATEX Super PM Extractor Arm

1.5 m (0.25 + 1.5m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-368

ATEX Super PM Extractor Arm

1.5 m (0.5 + 1.5m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-369

ATEX Super PM Extractor Arm

2 m (0.25 + 2m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-370

ATEX Super PM Extractor Arm

2 m (0.5 + 2m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-371

ATEX Super PM Extractor Arm

3 m (0.5 + 3m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-372

ATEX Super PM Extractor Arm

4 m (0.5 + 0.6 + 3m)

110 mm

Straight hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-373

ATEX Super PM Extractor Arm

1.5 m (0.25 + 1.5m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-374

ATEX Super PM Extractor Arm

1.5 m (0.5 + 1.5m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-375

ATEX Super PM Extractor Arm

2 m (0.25 + 2m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-376

ATEX Super PM Extractor Arm

2 m (0.5 + 2m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-377

ATEX Super PM Extractor Arm

3 m (0.5 + 3m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-378

ATEX Super PM Extractor Arm

4 m (0.5 + 0.6 + 3m)

110 mm

150 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-379

ATEX Super PM Extractor Arm

1.5 m (0.25 + 1.5m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-380

ATEX Super PM Extractor Arm

1.5 (0.5 + 1.5m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-381

ATEX Super PM Extractor Arm

2 m (0.25 + 2m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-382

ATEX Super PM Extractor Arm

2 m (0.5 + 2m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-383

ATEX Super PM Extractor Arm

3 m (0.5 + 3m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-384

ATEX Super PM Extractor Arm

4 m (0.5 + 0.6 + 3m)

110 mm

67 deg. hood. PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-385

ATEX Super PM Extractor Arm

1.5 m (0.25 + 1.5m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-386

ATEX Super PM Extractor Arm

1.5 (0.5 + 1.5m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-387

ATEX Super PM Extractor Arm

2 m (0.25 + 2m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-388

ATEX Super PM Extractor Arm

2 m (0.5 + 2m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-389

ATEX Super PM Extractor Arm

3 m (0.5 + 3m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

P-390

ATEX Super PM Extractor Arm

4 m (0.5 + 0.6 + 3m)

160 mm

PVC hose electrically conductive 104 Ohm. Explosion-Proof. Incl. wall bracket, hose, and hood.

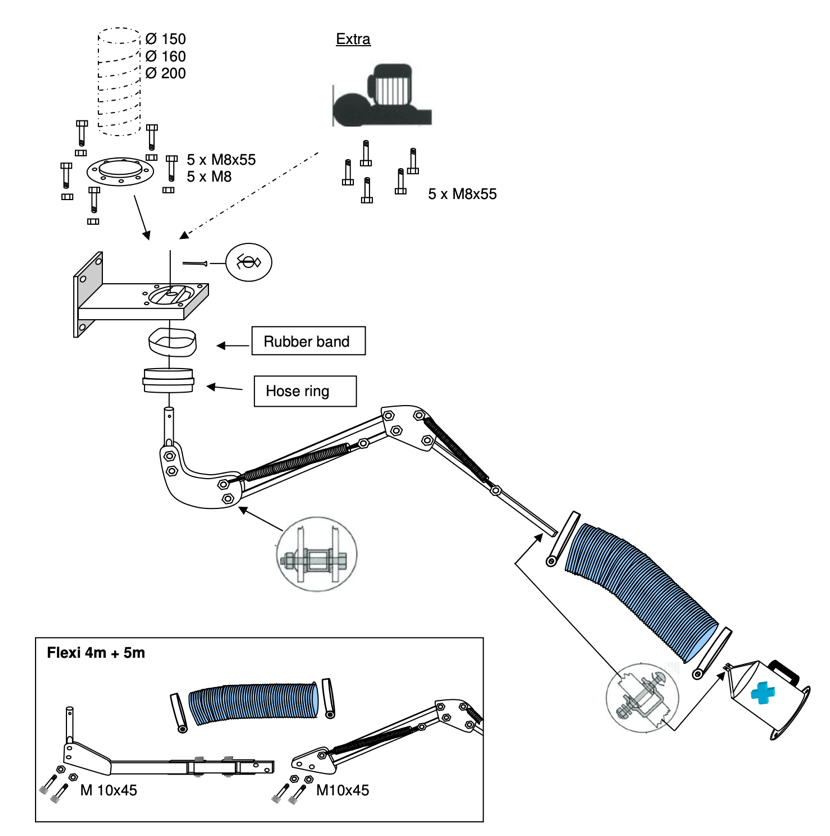

Installation Instructions
  1. Mount the Wall Bracket
  2. Mount the Parallelogram Arm
  3. Pull the Hose Over the Parallelogram Arm
  4. Mount the Hood
  5. Fasten the Hose
Installation image

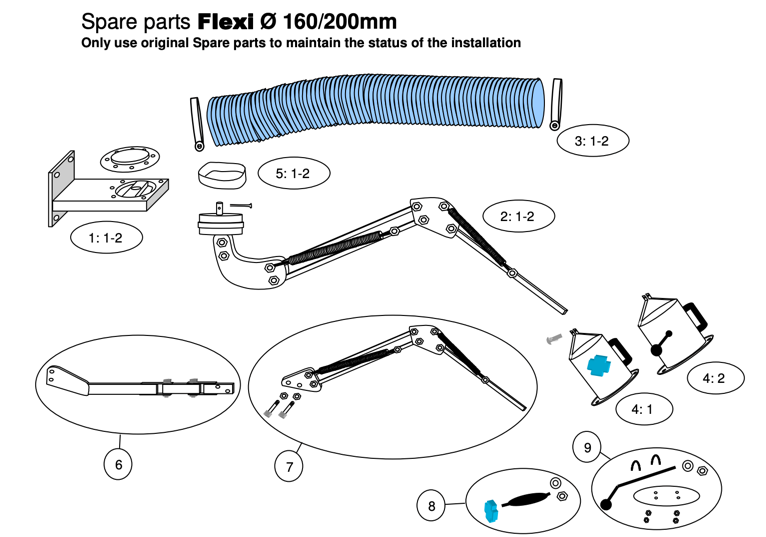

Spare parts image
Specs image
